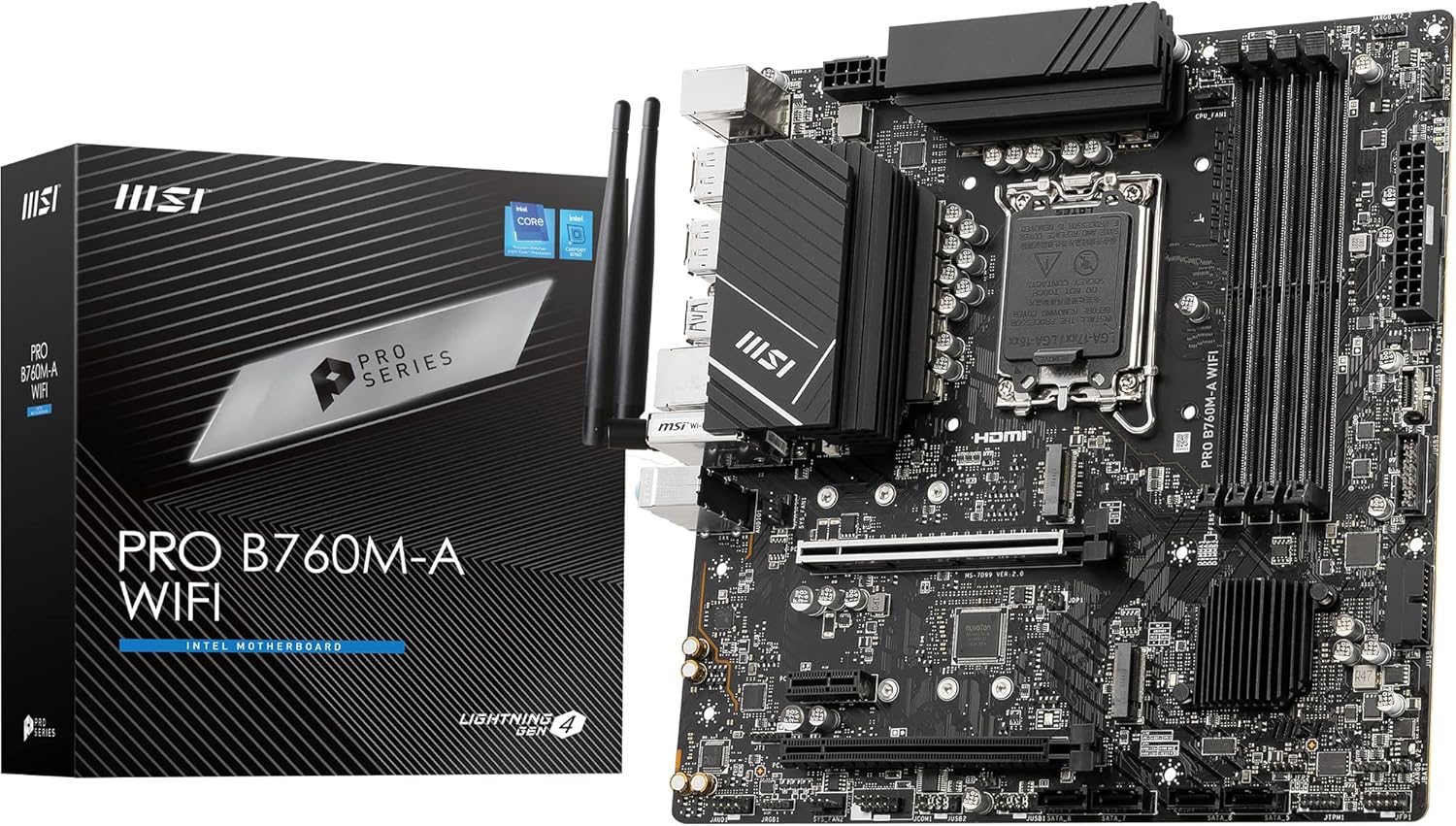

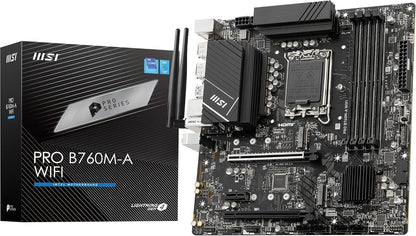

MSI Pro B760M-A WiFi Motherboard
MSI Pro B760M-A WiFi Motherboard
Couldn't load pickup availability
Supports 14th, 13th and 12th Gen Intel Core processors
The PRO B760M-A WIFI motherboard supports 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors.
- Form factor: Micro-ATX
- Socket: LGA 1700
- Chipset: Intel B760
12+1 phase dual rail power design with P-PAK
Thanks to its 8 + 4 pin connector and exclusive Core Boost technology, the PRO B760M-A WIFI motherboard can harness the full power of the processor and handle the most demanding games at high system settings.
- Digital PWM controller
- 12-phase dual rail CPU power (P-PAK)
- 1-phase GT power
- 1-phase AUX power
Built-in cooling solutions
VRM cooling: a larger heatsink and 7W/mK thermal pads keep the VRM at the right temperature.
PCB cooling: the premium circuit board is made of 8 layers of 2 oz copper, improving heat dissipation and system stability.
Frozr AI Cooling: automatically adjusts system fan settings based on CPU and GPU temperatures.
4 x DDR5 Dual Channel (6800 MHz OC*)
Memory Boost : the memory circuitry is fully isolated, ensuring a purer data signal and optimal gaming and overclocking performance.
The XMP profiles included in the MSI BIOS have been verified by the MSI OC LAB and can easily be enabled through automatic startup settings. They give you faster, more stable memory.
* 1DPC 1R, maximum overclocking frequency of 6800+ MHz, Intel XMP profile support.
Reinforced PCIe 4.0 x16 slots
Steel Armor slots feature more solder points on the PCB to better withstand the weight of the heaviest graphics cards. Steel Armor slots are also shielded against electromagnetic interference.
2 x PCIe 4.0/3.0 x16 slots* (with Steel Armor)
1 x PCIe 3.0 x1 slot
*x16/x4 support

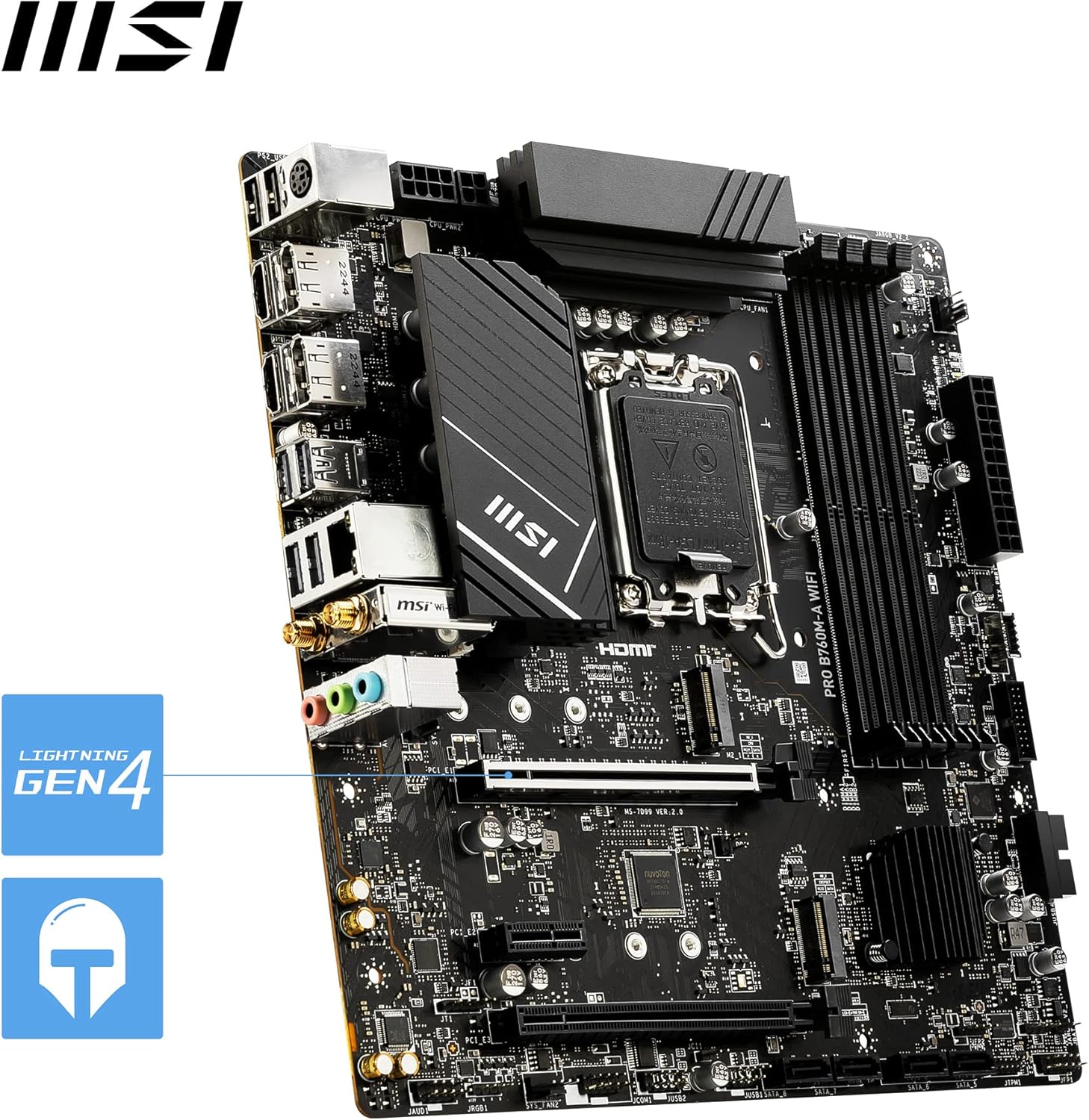

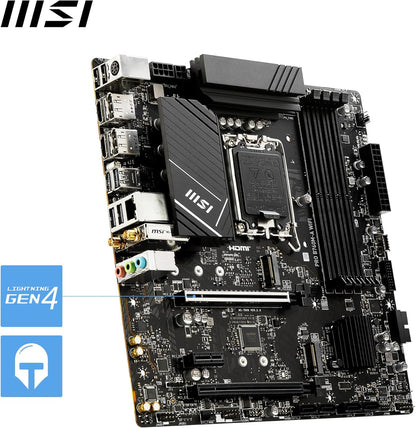

M.2 Gen4 slots
The PRO B760M-A WIFI motherboard features MSI Lightning M.2 Gen4 slots.
2 x Gen4 x4 64 Gb/s slots

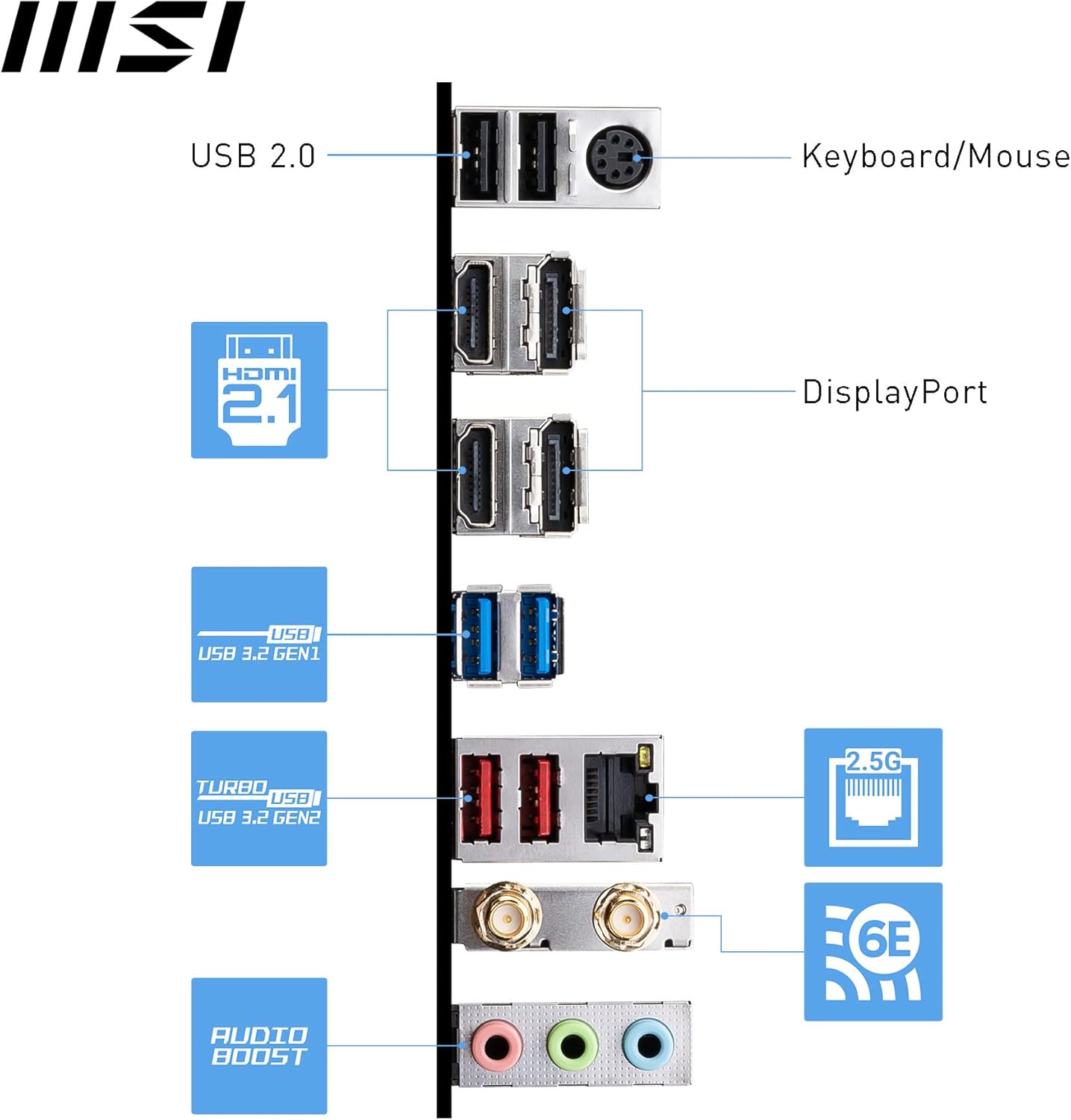

Wi-Fi 6E and Bluetooth 5.3
2.5G LAN : a Realtek 2.5 Gb/s LAN controller guarantees a premium networking experience.
Wi-Fi 6E : this motherboard features a Wi-Fi 6E module delivering ultra-low latency and high bandwidth, plus the Bluetooth 5.3 standard.
USB 3.2 Gen2 Type-A : connect all your peripherals and transfer your files quickly with 10 Gb/s transfer rates.
HD Audio : S/PDIF output and 7.1 High Definition audio thanks to Audio Boost.
Photos are not contractual — the configuration delivered is that of the selected variant.
Made in our workshop
Hand-built and tested in Paris before shipping — clean cable management, RGB tuned.
